Double Twist Machines
We supply machines to take up the twisted product on reel sizes from 450mm (18") to 1800mm(72") diameter
They all feature
| High production speeds – and wide product size range capability |
| Low noise levels – low energy consumption |
| Rapid installation - supplied as integral units with guard |
| Advanced wire path to minimise tension effects on wire |
| Reliability over years of 24 hour operation |
For further information on any of our product or services, please contact us via the Feedback facility.
560 630 800 1000 1250 1600/1800
CLICK ON TAKE-UP REEL SIZE TO SEE MACHINE DETAILS

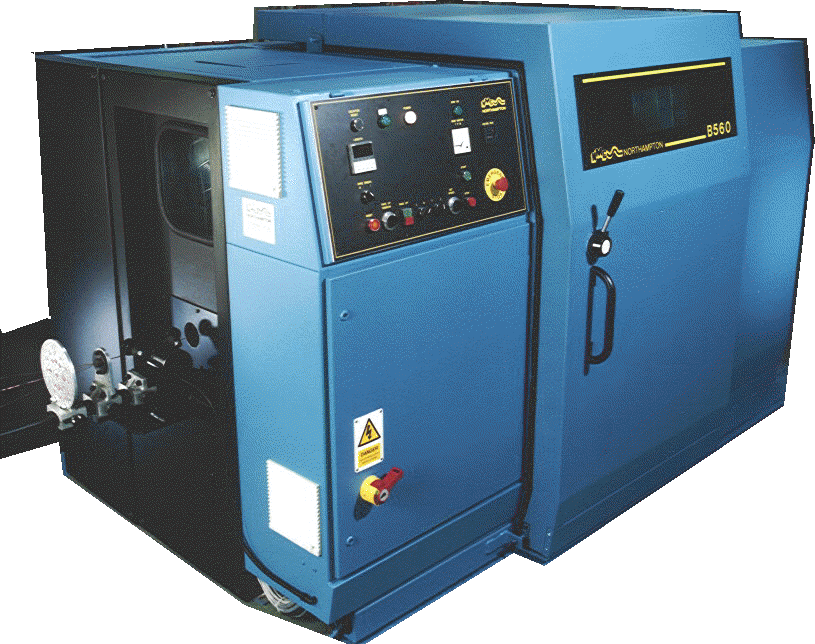

For very fine wire bunching or twinning of insulated cores for category type data (LAN) cable. Speeds of up 7000 twists/min.

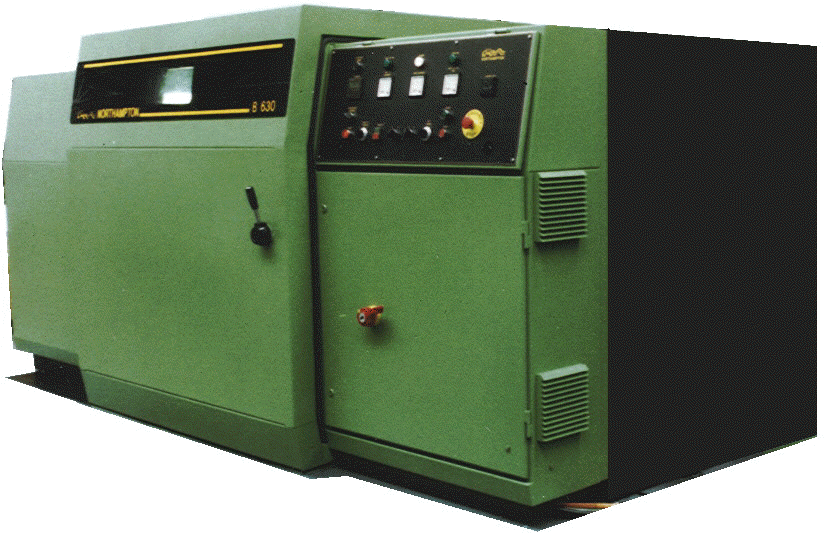

General small flexible wire bunching or 7 and 19 wire stranding up to 6 sq mm section. Also for twinning of data cable or small insulated laying up operations up to 7mm diameter Speeds of up to 6000 twists/min

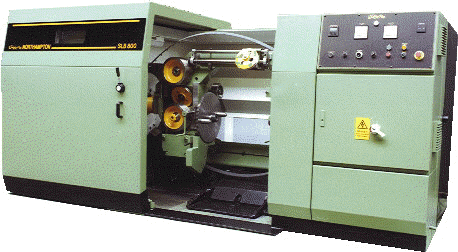

World leading 800mm (36") machine with features that have given this modern machine the major share of installations all over the globe.
- Speed rated up to 5000 twists/min
 | Will take Imperial 36" reels for the USA market |
| Available in different mechanical/electronic control options |
SLB800M is a basic all mechanical machine – a simple maintenance free workhorse for building/general wire stranding up to 16 sq mm. Also used for Cat 5 laying up. No sliprings or brushes
SLB800E or D are the electronic tension (E) and electronic lay (D) versions for finer wire where more delicate tension control is needed, or for data cable laying up/jobbing operations where taping and binding units can be added.
Heavy duty 1 metre (42") buncher rated at up to 2800 twists/min.

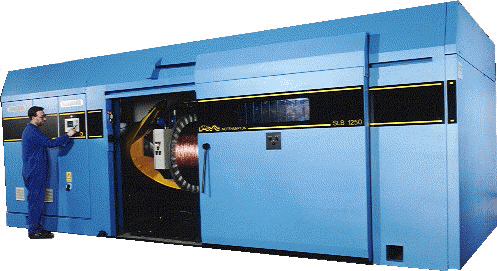

Universally popular 1250mm (54") machine with installations in all of the major cablemaking plants from Japan to USA, Finland to Australia !
Used for stranding, often with compaction and can handle up to 95 sq mm (4/0 AWG) product, but also for laying up mains cable up to 25mm diameter
Unique 1600/1800(72") machine for large copper or aluminium power cable with/without compaction and a capacity up to 150 sq mm product.
Many of this modern and recent design of machine have already been installed – please ask us for the references for this superb machine. On a machine this big it has to be completely reliable and this is where the Northampton experience and quality excels
Pay offs: A complete range of tension control devices is available to take the core materials into the bunchers – whether from reels or bulk stem packs.
-Festoon or drum tensioners for unilay (single) or contralay (two pass) processes
-Flyer pay offs
-Roll off units – driven/undriven
-Stem pack systems
